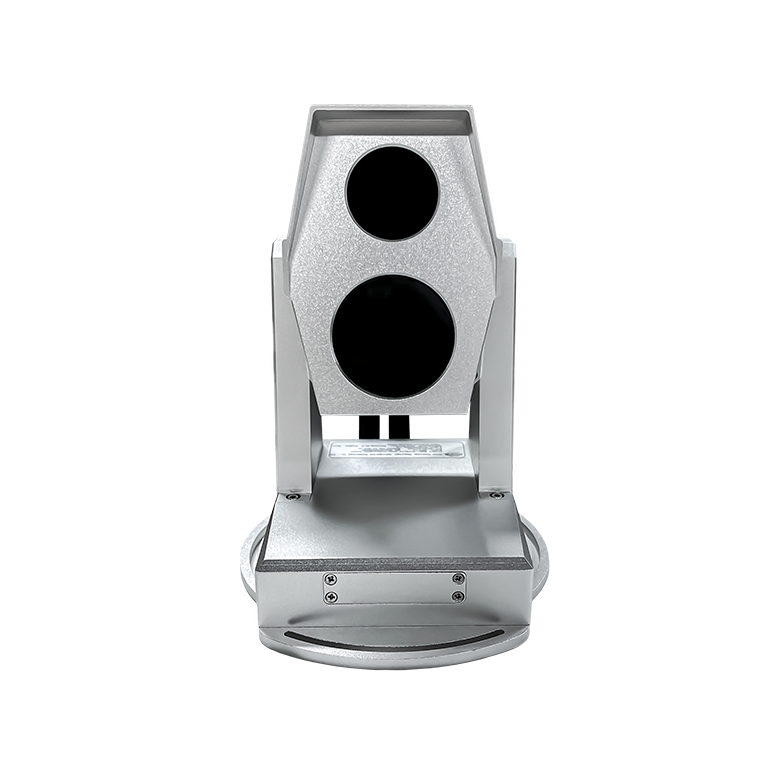

IDS10 Image Displacement Station
Setup the IDS Image Displacement Station, and fix the monitoring targets on the structure to be monitored.
Inside the IDS Image Displacement Station, a photo containing all monitoring targets will be captured. The actual image is shown below.

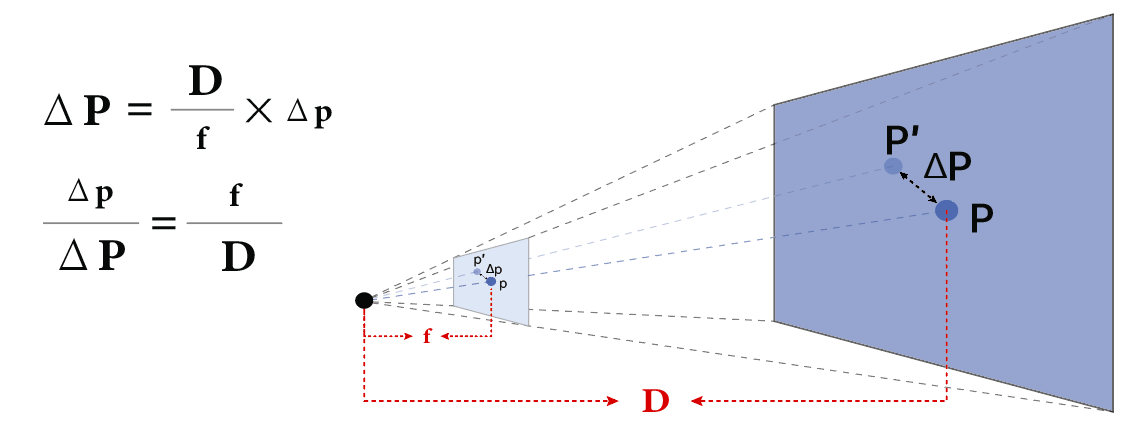

The topological relationship between IDS10, the photo inside IDS10, and the monitored target point P is illustrated in the figure below. Here, f represents the focal length of the lens used in IDS10, which is a known value. The distance D between IDS10 and the monitored target point can be measured using a laser rangefinder.
When the monitored target point P has displacement of ΔP, the corresponding point p on the IDS image will shift by Δp pixels. Based on the principle of similar triangles, we can derive the actual displacement of point P using the known values of f, D, and Δp.
Measurement Distance | 1-500m | Measurement Accuracy | ±0.05mm (at 20m distance) |
Measurement Resolutio | 0.01 pixel (depends on lens and focal length) | Operating Temperature | -35℃ to 80℃ |
Sampling Frequency | 1-50Hz | Transmission Method | 4G/Ethernet (MQTT/TCP protocol) |
Power Supply Voltage | DC12-36V | Protection Level | IP65 |
Target Type | Passive target (also compatible with active targets) | Frequency Response Range | 0.1-10Hz |
Illumination Source | Built-in laser illumination, with a range of over 300 meters | Frequency Accuracy | 0.02Hz |
Configuration Environment | Supports offline installation and debugging (works without network) | Operating System | Linux |
Calibration Method | Intelligent algorithm for automatic coefficient calibration, no need for distance measurement or leveling | Power Consumption | 15W (supports low-power mode, <0.5W) |
Device Interfaces | 4G/GNSS/WIFI/Ethernet/RS485 | Data Storage | Supports local TF card storage, with offline data retransmission upon reconnection |
Compensation System | Laser modulation atmospheric disturbance compensation, three-axis attitude angle compensation, light brightness compensation, temperature compensation | Capture Control | Supports RS485/IO interface for device capture contro |
Abnormal Alarm | Supports alerts for displacement threshold exceedance, target loss, and event notifications via mobile SMS |
Ultra-High Precision:
Utilizing a self-developed image processing algorithm, the smallest recognizable unit in the photograph is enhanced to sub-pixel level.
Measurement resolution: ±0.02mm
Measurement accuracy: ±0.05mm @ 20m, ±0.5mm @ 100m
Dynamic sampling:
Using high speed CCD, the maximum sampling frequency can reach 50Hz.
Multi-point Measurement:
A single device can realize the two-dimensional dynamic displacement of no less than 30 measuring points.
Easy Target:
Only IDS needs power, we needn’t supply power to target Prism. It’s easy to install.
Local Process and 4G transmission:
All the data calculate and process are finished inside IDS10. Clients get the final Δx and Δy, and all the data can be sent back to clients’ cloud directly.
